Electric Reach Stacker

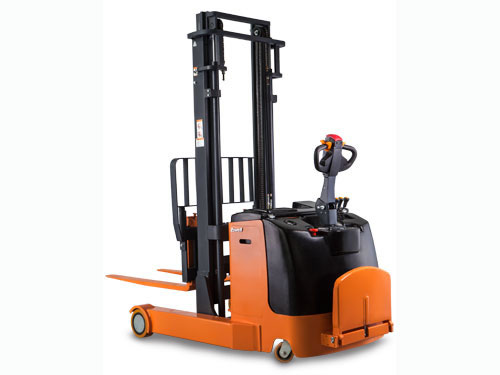

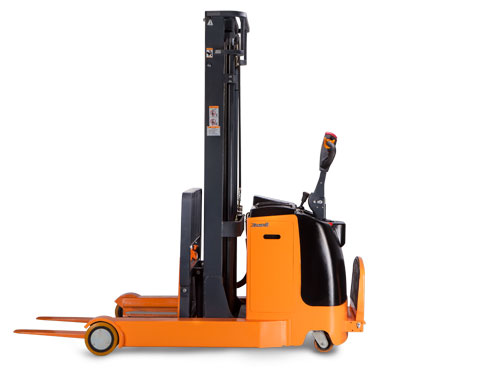

Description of XR Electric Reach Stacker:

Zowell XR electric reach stacker is typically designed for stacking of medium and high intensity, which includes pallet transport and stacking in warehouses, manufacturing industries or retail stores. And its loading capacity is from 1500kgs to 2000kgs. It can work independently as well as in connection with a platform. A platform is needed for long-distance transport.

Features of XR Electric Reach Stacker:

1. Reach function: its fork can extend as long as 580mm.
2. Fork can tilt forward and backward for safer load handling.
3. The mast and frame are dividable and exchangeable.
4. Germany Mannstaedt forklift profile for mast building.
5. SWISS brand or ITALY hydraulic pump.
6. Regenerative braking function.
7. CURTIS electronic controller.

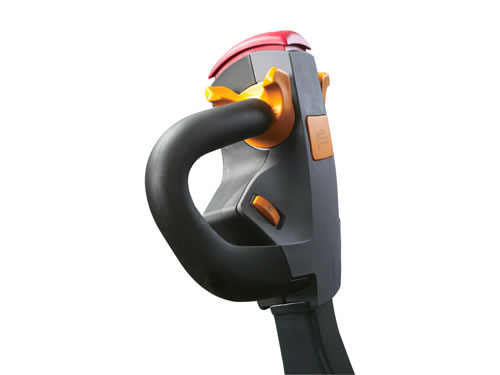

8. Germany Frei handle.

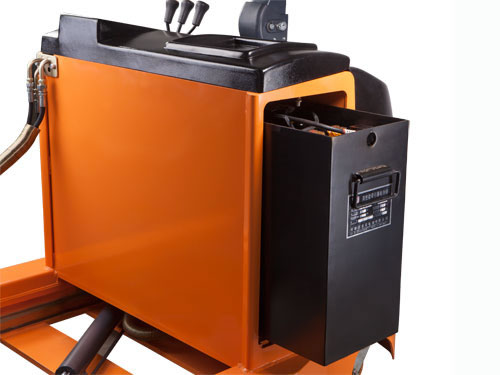

9. Battery side extraction: the side gate and the battery cover are openable. Battery can be removed from the side, thereby making it very convenient to replace and maintain batteries.
10. Emergency reversing device in the handle provides improved operating safety.
11. Emergency power disconnection switch.
12. Braking system, applied with handle upright and horizontal position, can help to increase the safety degree of the truck.
13. Built-in pressure relief valve protects the trucks from overloading, thus increasing its reliability.

Technical Parameters of XR Electric Reach Stacker:

Identification 1 Product model XR15 XR20
2 Power supply Electric
3 Operating type Standing
4 Load capacity Q kg 1500 2000
5 Load center C mm 500
6 Wheelbase Y mm 1390 1590
Weight 1 Truck Weight (without battery) kg 1700 1780
2 Max axle loading, loaded (drive end) kg 1338 1520
3 Max axle loading, loaded (load end) kg 2112 2230
Wheel 1 Tyres Polyurethane
2 Driving wheels size mm Ф230×75
3 Loading wheels size mm Ф210×85
4 Balance wheels size mm Ф125×60
5 Tread, drive end mm 740
6 Tread, load end mm 985

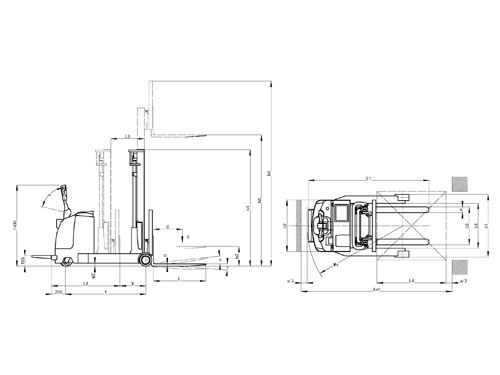

Dimensions 1 Lowered mast height h1 mm 1780
2 Free lift h2 mm 90
3 Lift height h3 mm 2500
4 Extended mast height h4 mm 3440
5 Forks height, lowered h5/s mm 35
6 Overall length L1 mm 2090 2290
7 Length to face of forks L2 mm 1185
8 Overall width b1 mm 1090
9 Fork dimensions s/e/l mm 100/35/1070
10 Forks width b3 mm 200-720
11 Reach length L3 mm 580
12 Min. ground clearance m mm 55
13 Aisle width Ast mm 2610 2810
14 Turning radius Wa mm 1656 1756
Performance 1 Travel speed loaded/unloaded km/h 4.8/5.6
2 Lift speed loaded/unloaded m/s 90/120
3 Lowering speed loaded/unloaded m/s 125/80
4 Max gradeability loaded/unloaded % 5/8
5 Service brake Electromagnetic brake
Electric Motor 1 Drive motor rating kW 1.2(DC),1.5(AC)
2 Lift motor rating kW 3.0
3 Battery voltage/capacity V/Ah 24/240(280)
4 Battery weight kg 250(280)
Other 1 Type of drive control MOSFET control
2 Noise level at operator’s ear dB(A) <70

Height Data Choices of XR Electric Reach Stacker:

1 Lowered mast height h1 mm 2030 2230 1780 2030 2180 2380 2350 1960 2060 2160 2230
2 Free lift h2 mm 1000 1200 90 90 90 90 90 1400 1500 1600 1660
3 Lift height h3 mm 1600 1800 2500 3000 3300 3700 4000 4200 4500 4800 5000
4 Extended mast height h4 mm 2540 2740 3440 3940 4240 4640 4940 5040 5340 5640 5840
Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of electric reach stacker in China. Besides, we also provide clients with electric pallet truck, electric reach truck, electric tow tractor, scissor lift, aerial order picker, manual warehouse equipment, customized truck, and more. With high quality and competitive price, our products have been quite popular among customers from as many as 40 countries and regions, and many of our products have obtained CE and ISO9001:2008 certification. If you're interested in our electric reach stacker, please contact us freely.
