Product List

Hand Pallet Truck

Description of Hand Pallet

Truck:

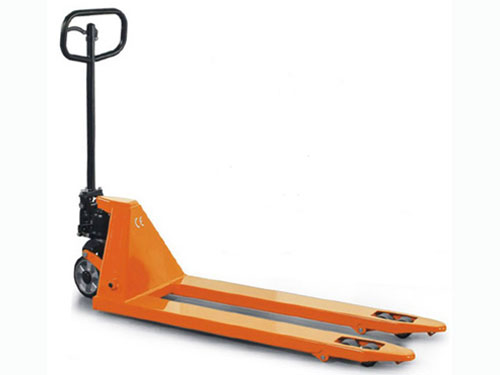

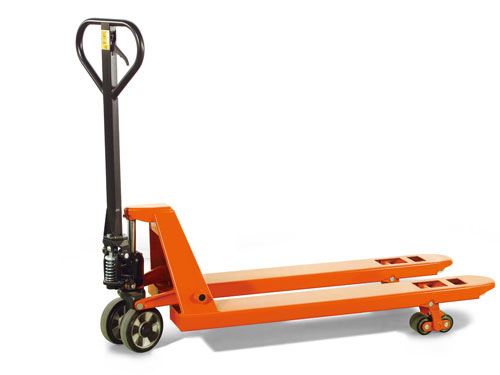

Our hand pallet truck, sometimes also called pallet jack, pump truck or jigger, is a kind of tool mainly used to lift and move pallets.
Its front wheels are mounted inside the end of forks. As its hydraulic jack is raised up, these forks will be separated vertically from the front wheels, which will force the loads upward until it clears the floor. And the pallet is only lifted enough to clear the floor for subsequent travel.

Technical Data of Hand Pallet Truck:


1 Type

DF168

DFE20

DF25

DF30

2 Capacity Q kg 1680 2000 2500 3000
3 Min.fork height h mm 75 75 85 75 85 75
4 Max.fork height h1mm 190 190 200 190 200 190
5 Steering wheel mm Φ180x50 Φ180x50 Φ200x50 Φ180x50 Φ200x50 Φ180x50
6 Load roller Single mm Φ73x80 Φ73x80 Φ80x93 Φ74x93 Φ80x93 Φ74x93
7 Load roller Tandem mm Φ73x55 Φ73x55 Φ80x70 Φ74x70 Φ80x70 Φ74x70
8 Size of fork e*s mm 150x50 150x50 160x60 160x60
9 Width overall forks B mm 520 550 550 685 550 685 550 685 550 685 550 685
10 Fork length I mm 1150 1150 1150 1220 1150 1220 1150 1220 1150 1220 1150 1220
12 Container loading Qty pcs 198 180 180 144 180 144 180 144 180 144 180 144
Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of hand pallet truck (pallet jack) in China. Besides, we also provide clients with electric pallet truck, electric stacker, electric reach truck, electric tow tractor, scissor lift, aerial order picker, customized truck, and more. With high quality and competitive price, our products have been quite popular among customers from as many as 40 countries and regions, and many of our products have obtained CE and ISO9001:2008 certification. If you're interested in our hand pallet truck (pallet jack), please contact us freely.
